Proffessional 9 bit DVR Card For Windows OS

The Camsecure model 808PC 9 bit Proffessional PCI DVR capture card for windows converts a PC into a dedicated CCTV
recording centre. Each camera may be recorded and displayed at up to 640 x 480 Resolution and colour and contrast settings
etc. can be independantly controlled for each camera. Compression can be selected as either H.264 or MPEG-4 as required.
Up to 16 channels may be recorded and played back simultaneously and there is a composite video output on the card which
can be used to switch its cameras to a local monitor. All functions of the card including playback, digital zoom, PTZ control,

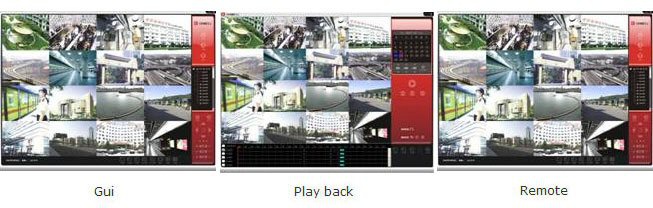

snapshot and record can be controlled from Internet Explorer or with the supplied client software for added security.

The card also has record on motion, Email on motion and many other security functions. Up to 2 x cards can be fitted to a PC
to provide up to 16 channels of recording. NOTE that this proffessional DVR card takes control of the PC and the PC cannot be
used for other uses whithout un-installing the card.

Specifications:

Video Inputs - 8 Channel Composite
Video Output - 1 per card
Frames Per Second- 200 PAL -240 NTSC
Compression - H.264 / MPEG-4
Multiple Cards - mix 4 or 8 to max 16CH
Display resolution - 640 x 480 352 x 288
or 320 x240 per picture
Record Resolution - 640 x 480 352 x 288
or 320 x240 per picture
File Size - 80 - 200 Mb / Hour / Channel
PTZ Control - Pelco Protocol local / remote
Digital Zoom - available per picture
Fast Internet Access - connect 256K - 2M
internet bandwidth without occupying CPU
Bandwidth. Remote PTZ control included
Can view with Internet Explorer too.
Multiple Record Modes - Manual,
Continuous, Schedule, Event (Senor,
Motion Detection) and Multi-zone motion
detection setting Simultaneously available
Playback Modes - Multi-channels
playback simultaneously; Digital Zoom,
capture and print or backup the picture of
the Video files.
Lightning Protection - Yes
