Outdoor IP Camera with Infra Red LED's

Outdoor IP Camera, Weatherproof with built in Webserver, Video output, Stream, FTP, Email

Easy to install. Easy to use, this outdoor IP camera with built in ifra red LED's has a built in web server and allows you to embed the
live video stream in a web page and you can also save the stream as images (JPG) or video (WMV) and take 1600 x 1200 pixel
pictures.....But that's not all.......It also has motion detection, live zoom, Video out to TV (NTSC / PAL), a timer and much, much more!

This outdoor IP camera has a solid metal casing and only one cable comes out of the camera. It is over a meter long and it then splits
in 4 as shown on the picture>>>>>

General Specification:

- A Linux based server

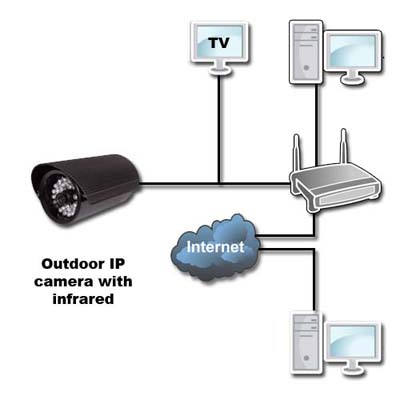

- Embedded Web Server - No PC needed for the unit to operate.
- 10/100Mbps Fast Ethernet Network Access (RJ45 Jack).

Video:

- Quality: Fine, Normal, Basic
- Resolution: 640x480, 320x240, 160x120
- Quality & Color Setup: Brightness, Contrast, Hue, Saturation and Sharpness
- Maximum of 25 fps

Snapshot mode:

- Take 2 MEGA Pixel pictures (1600 * 1200)
- Upload to FTP or send to preset E-mail

Motion detection:

- Take 2 MEGA Pixel pictures (1600 * 1200) when motion detected
- Upload to FTP or send mail to appointed mailbox
- Detect appointed area - support detects 2 positions
- E-Mail the Detected Images to preset E-Mail address
- Upload the Detected Images to preset FTP server
- Sensitivity Level setting (99 different levels)

Technical Specification:

- Support Network Protocol - HTTP, TCP/IP, DDNS, DHCP, and PPPoE (XDSL)
- IP Service - quick search and easy access on Internet with name of camera
(it requires login and password)
- Block appointed IP: limit entrance IP address
- Video Capture - Save as Pictures (.JPG) / Movie (.WMV & .AVI) and SnapShot as pictures
- Timer Schedule: Setting time for Snap Shot & Motion Detection
- Video output to TV (NTSC / PAL) or Web browser view
- 16 LED Infrared for night vision for a distance up to 30M
- Digital zoom in live view video, pan & tilt ZOOM area
- DVR software - Surf 16 Ch - view & record 16 cameras simultaneously
- High sensitivity Sensor for low illumination
- Reset all setting to default
- Sliding shield to protect front panel from the elements
- Dimension: 11.5 cm long x 6 cm in diameter
- Cable length: 1.30m

Regulatory Approvals:

- FCC
- CE
- ROHS Compliant, (See http://www.rohs.gov.uk/ for details)

Package Includes:

- 9060 Outdoor IP Camera with built in Webserver
- BNC to RCA Adaptor
- Power Adapter (100-240V) (UK 3 pin standard)
- Manual, Quick Installation and DVR software on CD
- Camsecure software CD with over 40 Free programs
- 3 Screws & plastic plugs
- Metallic adjustable mount

Please Note that in order to take full advantage of this camera's features you will need the following:

Broadband hub, router or similar with free ethernet port, Internet Explorer with Active X installed (free download) Windows Media Player V10.0 or above.

This unit is not fully compliant with Firefox or Safari web browser's. Camsecure provide sample java code to allow you to stream to a web page that will
display the stream from this camera in those browsers. Makes a great CCTV IP Camera or Weatherproof Webcam and has many more uses too.
