High Resolution Day Night Colour Mono switching camera CA-45EDC from Camsecure

Day / Night SONY Super HAD HQ1 high resolution camera, 12-24v
High resolution day / night switching camera with a SONY Super HAD CCD
and a Hitachi HQ1 DSP. Using a built in IR cut filter to switch between
monochrome and colour .The camera has a digital slow shutter function and a
digital noise reduction circuit. A built in video balun allows twisted pair cable to
be used directly to send video up to 300 metres. The camera is also fitted with
a built in microphone and audio output, the housing has a back focus feature
making the camera easy to set up.

1/3� SONY Super HAD CCD
High resolution 550 TV lines
Day / Night Switching using cut filter
Hitachi HQ1 DSP
0.01 lux - Normal shutter
0.001 lux - Digital slow shutter
Auto gain control (AGC)
Auto white balance (AWB)
Auto iris / manual iris
Back Light compensation (BLC)
Adjustable back focus
Audio
Horizontal mirror function
Digital noise reduction (DNR)
Digital slow shutter (DSS)
Built in twisted pair balun
Power input DC12v - AC24v

Camera Type Day / Night (switching)
Pick Up Device 1/3� SONY Super HAD CCD
Picture Elements 752 x 582 pixels
Digital Signal Processor Hitachi HQ1 DSP
Horizontal Resolution 550 TV Lines
Minimum Illumination 0.01 Lux
Minimum Illumination 0.001 Lux (DSS on)
Scanning System 2 : 1 Interlace
Synchronisation Internal
Video Output 1Vp-p composite video 75ohm
S/N Ratio 50dB min
Gamma 0.45
Auto Gain Control +18dB max
Audio Output 2Vp-p max
Iris Control Electronic iris - Auto iris (DC lens
control)
Electronic Shutter 1/50 - 1/120,000
White Balance Auto tracing
Back Light
Compensation On/Off switchable
Gain Control On/Off switchable
Digital slow Shutter On/Off switchable
Horizontal Mirror On/Off switchable
Cat -5 Ballon RJ45 connector video & power
Power Supply DC12v - AC24v
Power Consumption 150mA max. (DC12v) /
60mA max. (AC24v)

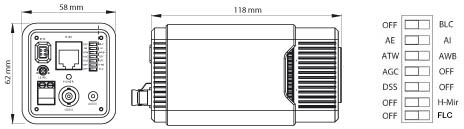

Dimension 58(W) x 62(H) x 118(L) mm

All Camsecure Body Camera's come with a 2 year warranty. If a fault develops within the first year the camera is replaced. If a fault develops
within the second year the camera is repaired or replaced if the repair is deemed uneconomical. These are highly reliable units with sparkling
performance.

If you have any special or unusual camera requirements please dont hesitate to ask.
