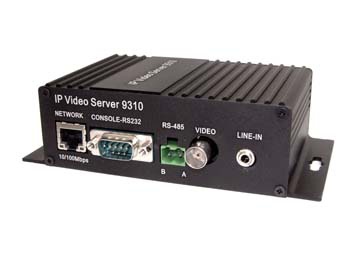

MPEG 4 Vidoe and Audio streaming webserver from Camsecure

MPEG 4 Network CCTV Video Server with Audio and Pelco D PTZ Protocol and Alarm Inputs

Superb MPEG 4 Video Webserver with a great many additional functions. This is the unit to use to when hgih quality fast video and
audio streaming is needed for a single camera and even has alarms and PTZ control. Check out the feature list.

Network:
- Embedded Web server No need for PC links straight to Internet..
- 10/100 Mbps Base-T Ethernet
- Network Protocols: TCP/IP, UDP, ICMP, HTTP, FTP, Telnet, SMTP,
DHCP, NTP, DDNS includes most of network protocol
- IEEE 802.11g wireless LAN (9320 only)

Video:
- NTSC / PAL Auto detection
- Record to Mpeg-4 format (AVI or mpeg raw file) with D1/1/2D1/SIF/QSIF at
full frame
- Ideal Synchronization of Audio & Video
- Auto / Manual adjust network bandwidth
- Resolution: 720x576/480/288/240, 352x240/288, 176x144/122 @ 30/25 fps

- Video Bit rate: 128K ~ 3M bits/sec (CBR/VBR configurable)
- Recording& Playback: Directly control from Web Browser
- Video Adjustment: Brightness, Contrast, Hue, Saturation, Frame rate, Bit rate, Bit Rate, GOP, Frame rate

Audio:
- G.726 U-Law/A-Low
- Adjustable audio data rate, 384Kbps to 64Kbps, Sample rate: 48K

Control Interface:
- RS485 output for controlling PTZ camera (make sure your camera uses the protocol PELCO-D). This server won't work with any other
protocol.
- 6 Digital I/O interface for sensor and alarm
- RS232 Interface for serial communication

Features:
- Built-in Web server, Simple to use!,- Support Internet IP service finder, Easy to find!, - High Quality Full D1 MPEG-4 compliant Video with G.726 Audio lip-sync streaming.
- Dynamic Bandwidth Management for internet traffic, - Video compression frame rate and bit rate adjustable for advance user., - Email picture or ftp storage if Motion
Detection has been detected, - Recording& Playback: Directly control from Web Browser, - Multiple PTZ camera support through the RS485 interface
- Remote control for both sensors and alarms with GPIO and RS232 interface: You can for example connect a sensor that can trigger a screenshot if the status changes, or in
the example of an alarm, if the camera detect a movement, you can set the alarm to go off, - Build in OSD (On Screen Display) function for customers own application.
- File management for Long time recording (over 1 month D1 /300G) - UPNP, 802.11g / b wireless LAN (IP9320 only)

Part of Camsecure's technical support facility is to set up Dynamic Nameservers on your behalf (if you are not sure about doing this yourself) so you can still access your
cameras without a fixed IP address using a name instead of a number. Check out the Support Section for more information.

This is an excellent device for
proffessional quality fast video and
audio streaming of a camera over
your network or the internet.

Its great list of features mean you
can use this webserver for
security, news broadcasting,
event recording, controlling remote
cameras and devices........Or just
for fun.

As with all Camsecure products
you get full technical support and
assistance with this great piece of
equipment.
