Entry Level DVR - 4 channel with internet access
Camsecure CCTV
CCTV Equipment Software and Systems
Budget 4 channel DVR with 160GB HDD or 500GB HDD options

A four channel digital video recorder using MPEG 4 compression and capable of recording up to 5 days at @ 50fps (12fps per camera) using the built in 160GB HDD. The DVR also uses SATA hard drives for greater reliability. The unit will also display images in full D1 or quad display; alternatively cameras can be viewed in sequence mode. There is also motion detection which can be set by area and has sensitivity adjustment allowing recording to start when motion is detected. Audio recording is also available on a single channel. Backup is via USB cable to computer. The unit comes complete with a IR remote control. The DVR is also Networkable and offers high speeds over the LAN/WAN and can be password protected.
4 channel DVR with Internet access

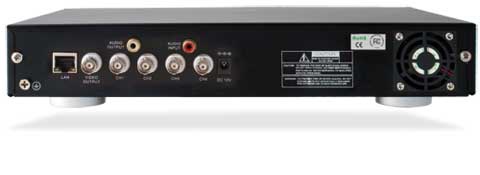

4 channel entry level DVR rear panel
Low Cost Webcams - Active Webcam Software - Infra Red Lamps - Hello Kitty Webcam - Webcam Drivers - PCI Capture Cards - Capture Card Driver
Internet CCTV - Low Cost IP Camera - Weatherproof IP Camera - Aviosys Webservers - Low Cost CCTV - PTZ Webcam
Used CCTV Equipment - Amateur CCTV - PTZ Domes - 4 Megapixel Webcam - IP Video Servers
2 Megapixel Webcam - Driverless Webcams - Webcam Software
Privacy Policy - Disclaimer
Specification:
•4 Channel
•160GB HDD fitted
•High speed internet viewing using IE explorer
•MPEG-4 recording
•2 CIF recording resolution
•Maximum record rate 50 fps
•Set the record rate fps for each channel independently
•Full D1 live real time display
•1x BNC monitor out
•1x Audio in; 1x Audio out
•Motion detect for each channel with sensitivity and area
•Recording modes include time schedule and motion detect
•Covert camera facility
•Backup to computer using built in USB 2.0 port
•IR remote control
•Password protected
•Size: 345 x 226 x 52mm
Video Compression MPEG4 - Video System PAL - Operation System Linux
Video Input / Output BNC 4-channel / BNC 1-channel
Audio Input / Output RCA 2-channel inputs / 1-channel output
Display Frame Rate 100 fps - Recording Frame Rate Max. 50 fps
Display Resolution 720 x 576 ( D1 ) - Record Resolution 720×288 ( 2 CIF ) - Record Mode Continuous / time schedule / motion detection / sensor triggered - HDD Interface SATA, one fixed HDD 160GB HDD - Playback Search Time & Date, Event List - USB Backup to PC using provided software - Network IE browser or PC application - Remote Control Included - Power Supply DC12V, 3A (adaptor included)
Dimension 345mm(W) x 226mm(D) x 52mm(H)


£165.00
£205.00
Please Note: There are cooling fans in these units which run Continuously and produce some noise so care should be taken with the location when used in domestic installations.
Entry Level Model with 160GB HDD
Entry Level Model with 500GB HDD
