16 Channel DVR with Internet Access - entry level plus 16 from Camsecure

Budget 16 channel Plus DVR with 250GB HDD

A 16 channel digital video recorder using MPEG 4 compression and capable of recording 4 days @ 100fps (6.25fps per camera) using a 250GB
HDD. The unit will also display images in full D1 or quad display; alternatively cameras can be viewed in sequence mode. There is also motion
detection which can be set by area and has sensitivity adjustment allowingrecording to start when motion is detected. The DVR supports PTZ
control via built in RS-485 (Pelco P). USB backup to memory stick for evidence and event storage. Sensor triggering via 16 alarm inputs with 1 alarm

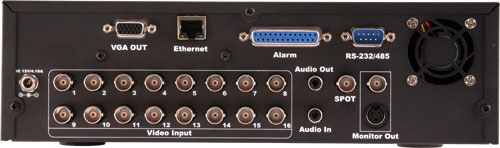

output. The DVR also has 1 channel of audio and has 4 monitor outputs - 1 main BNC, 1 spot BNC, S-Video & VGA. The unit comes complete with
a IR remote control. The DVR is also Networkable and offers high speeds over the LAN/WAN and can be password protected

Specification:

•16 Channel
•250GB HDD fitted
•High speed internet viewing using IE explorer
-H.264 recording
•2 CIF recording resolution
•Maximum record rate 100 fps
•Set the record rate fps for each channel
independently
•Set resolution for each channel
independently
•Full D1 live real time display
•1x BNC monitor out
•1x Spot monitor out
•1x VGA monitor output
•1x S-Video monitor out
•1x Audio in; 1x Audio out
•16x Alarm in; normally open or closed
•1x alarm relay out
•Support for PTZ cameras via RS485 port;
supports Pelco P/D
•Motion detect for each channel with
sensitivity and area
•Recording modes include time schedule and
motion detect
•Covert camera facility
•Backup to USB memory stick using built in
USB 2.0 port
•Backup player automatically copied with
each backup
•IR remote control
•Mouse control
•Password protected
•Size: 280 x 254 x 80mm
