Our 9360QW is an ideal wireless webserver for use at home or in the workplace. It has 4 video channels and 4 audio channels
and even has PTZ contol (PELCO Protocol). As this is a 4 chip solution, each channel is available independantly, video plus
audio or as a true quad mode so you can see all 4 cameras at once. In quad mode only microphone input 1 is transmitted to
avoid garbled audio.
The webserver will control a PTZ dome camera providing Left, Right, Up, Down and Zoom functions using the Pelco protocol and
has both wired and wireless LAN interfaces. It even has audio and video outputs to connect to a local monitor.
and even has PTZ contol (PELCO Protocol). As this is a 4 chip solution, each channel is available independantly, video plus
audio or as a true quad mode so you can see all 4 cameras at once. In quad mode only microphone input 1 is transmitted to
avoid garbled audio.
The webserver will control a PTZ dome camera providing Left, Right, Up, Down and Zoom functions using the Pelco protocol and
has both wired and wireless LAN interfaces. It even has audio and video outputs to connect to a local monitor.
Camsecure Wireless Webserver
MPEG4, Video, Audio, PTZ
£259.19
Register With Us for additional
Special Offers and Discounts
General Specification:
A Linux based server - Embedded Web Server - No PC needed for the unit to operate - UPNP, 802.11g
/ b wireless LAN - Wireless Wep Encryption - 10/100Mbps Fast Ethernet Network Access (RJ45 Jack)
- Multiple Video/Audio in - 4 different sources supported - 1 Video Output (to connect to a TV/monitor) -
1 Audio Output (i.e. you connect this to speakers and the operator could talk on it if he sees an
intruder) - High quality MPEG4 compliant video - Motion detection - Record with selectable resolution
on a computer
Video:
Resolution: selection from 176 x 120 to 720 x 480 - Color Setup: Brightness, Contrast, Hue,
Saturation, Sharpness - Choose to view the 4 video sources in split mode or select one at a time
Build in OSD (On Screen Display) function.
Motion detection:
Set a motion detection for each channel independently - Select a zone you wish to set for motion
detect
E-Mail the Detected Images to preset e-Mail address - FTP the Detected Images to preset FTP server.
Three Sensitivity Level to detect motion.
A Linux based server - Embedded Web Server - No PC needed for the unit to operate - UPNP, 802.11g
/ b wireless LAN - Wireless Wep Encryption - 10/100Mbps Fast Ethernet Network Access (RJ45 Jack)
- Multiple Video/Audio in - 4 different sources supported - 1 Video Output (to connect to a TV/monitor) -
1 Audio Output (i.e. you connect this to speakers and the operator could talk on it if he sees an
intruder) - High quality MPEG4 compliant video - Motion detection - Record with selectable resolution
on a computer
Video:
Resolution: selection from 176 x 120 to 720 x 480 - Color Setup: Brightness, Contrast, Hue,
Saturation, Sharpness - Choose to view the 4 video sources in split mode or select one at a time
Build in OSD (On Screen Display) function.
Motion detection:
Set a motion detection for each channel independently - Select a zone you wish to set for motion
detect
E-Mail the Detected Images to preset e-Mail address - FTP the Detected Images to preset FTP server.
Three Sensitivity Level to detect motion.
The 9360QW is a great webserver for surveillance use and
can be used with its own software or directly via Internet
Explorer, but note that this device will not work with Firefox
or other browsers than Internet Explorer as it uses Active X
controls.
can be used with its own software or directly via Internet
Explorer, but note that this device will not work with Firefox
or other browsers than Internet Explorer as it uses Active X
controls.
Technical Specification:
High Quality Full D1 MPEG-4 compliant Video with G.726 Audio streaming - Record
in MPEG-4 AVI format with D1/SIF/QSIF at full frame
Network protocol HTTP / IP / DHCP / PPPoE / DDNS /SMTP / NTP - Supports
Internet IP Service Finder, Easy to find! - Dynamic Bandwidth Management for internet
traffic - Video compression frame rate and bit rate adjustable for advance user.
Multiple PT camera support through the Rs485 interface - File management for Long
Duration recording (over 1 month D1 /300G)
Dimensions: 26 x 12 x 4.3 cm - Weight: 964.1g
4 Channels, jack audio input - 4 Channels Digital Video Input - 1 RS485 with DB9
connector for PT (Pan/Tilt) camera control - 1 RS232 Interface
This is a great MPEG 4 webserver with wireless or wired network connectivity and is
an ideal network surveillance tool. Its compatable with most CCTV cameras and
composite video sources including PTZ dome cameras with the Pelco PTZ .protocol.
High Quality Full D1 MPEG-4 compliant Video with G.726 Audio streaming - Record
in MPEG-4 AVI format with D1/SIF/QSIF at full frame
Network protocol HTTP / IP / DHCP / PPPoE / DDNS /SMTP / NTP - Supports
Internet IP Service Finder, Easy to find! - Dynamic Bandwidth Management for internet
traffic - Video compression frame rate and bit rate adjustable for advance user.
Multiple PT camera support through the Rs485 interface - File management for Long
Duration recording (over 1 month D1 /300G)
Dimensions: 26 x 12 x 4.3 cm - Weight: 964.1g
4 Channels, jack audio input - 4 Channels Digital Video Input - 1 RS485 with DB9
connector for PT (Pan/Tilt) camera control - 1 RS232 Interface
This is a great MPEG 4 webserver with wireless or wired network connectivity and is
an ideal network surveillance tool. Its compatable with most CCTV cameras and
composite video sources including PTZ dome cameras with the Pelco PTZ .protocol.

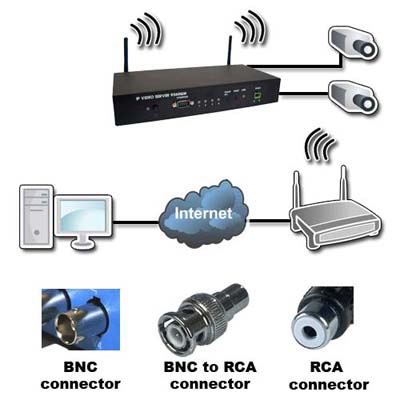

9360QW Rear Panel Connections

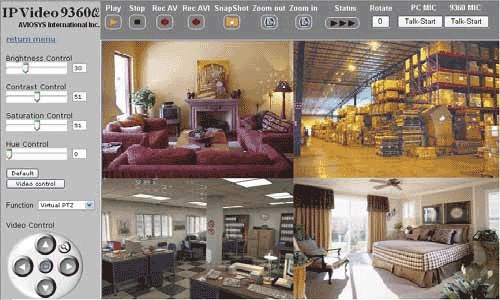

9360QW Graphic User Interface
9360QW Wireless MPEG4 Webserver
