Our range of CAT-5 |Twisted Pair video transmission Balun's and active CAT-5 video transmitters and receivers allow the use of low cost Category 5
network cabling to carry video signals in place of the usual CoAxial type cable. Up to 4 x video signals can be transmitted down one CAT-5 cable
and for distances up to 1500 metres. We have single passive Balun's right up to 19 inch rack mounted CAT-5 video transmission and receiving
equipment. Please contact us for any further details you may require on our CAT-5 Baluns and video transmission devices. See bottom of page for
additional rear views showing connections to some of our CAT 5 Video Baluns and Video Transmission Equipment.
network cabling to carry video signals in place of the usual CoAxial type cable. Up to 4 x video signals can be transmitted down one CAT-5 cable
and for distances up to 1500 metres. We have single passive Balun's right up to 19 inch rack mounted CAT-5 video transmission and receiving
equipment. Please contact us for any further details you may require on our CAT-5 Baluns and video transmission devices. See bottom of page for
additional rear views showing connections to some of our CAT 5 Video Baluns and Video Transmission Equipment.
£29.50
£122.00
£175.99
£6.00
£511.99
£5.00
£57.99
£24.99
£21.00
£299.99
£18.50
£29.99
£5.00
£24.99
Camsecure CCTV
Webcams CCTV Software and Systems
See Our Digital Video Recorders - All with 3 year warranty
Single channel transmitter only, single BNC
(video) to terminal block CAT-5 long range video
and audio balun. Converts standard video signal
to CAT-5, and allows a single video signal to be
sent up to 2400 metres, requires an external
power supply 12v DC @ 40mA included. Range
1500 metres colour 2400 metres monochrome.
Single channel transmitter only, single BNC
(video) and single phono (audio) to terminal
block CAT-5 long range video and audio balun.
Converts standard video and audio signals to
CAT-5, and allows a single video and audio
signal to be sent up to 2400 metres, requires an
external power supply 12v DC @ 40mA
included. Range 1500 metres colour 2400
metres monochrome.

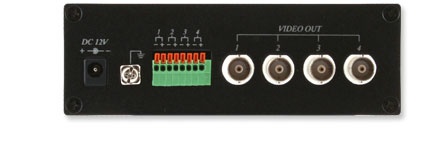

A four channel active receiver for use with
4 x W102T or 4 x W103T to receive 4 x
video signals up to 2400 metres down a
single CAT-5 cable with built in surge
protection, 12V Unregulated @ 150mA.
PSU included.
19” 1U rack mounting receiver with 16 passive
inputs and 16 outputs (BNC) for use with
15-W100 or 15-W104 to receive up to 16 video
signals at up to 600 metres down CAT-5 cable.
No external PSU required.
Single BNC to RJ45 CAT-5 video balun
with camera power transition. Converts a
standard video signal to CAT-5, and
allows a single video signal to be sent up
to 600 metres. Camera power range is 30
metres, video range 300 metres colour
600 metres monochrome. No external
PSU required.
19” 1U rack mounting receiver with 16 active
inputs and 32 outputs (BNC) 2 for each channel
for use with 15-W102T or 15-W103T to receive
up to 16 video signals at up to 2400 metres down
CAT-5 cable, with extra interference immunity
and adjustable brightness & contrast for a
cleaner sharper looking picture, also with built in
surge protection. 12v DC regulated at 500mA
included.
Single BNC to RJ45 CAT-5 video
balun. Converts a standard video
signal to CAT-5, and allows a single
video signal to be sent up to 600
metres. Range 300 metres colour 600
metres monochrome. No external PSU
required.
A kit containing a single channel transmitter and
a single channel receiver. Single BNC (video) to
terminal block CAT-5 long range video and audio
balun. Converts standard video signal to CAT-5,
and allows a single video signal to be sent up to
2400 metres, requires an external power
supply 12v DC @ 40mA included. Range 1500
metres colour 2400 metres monochrome.
4 way BNC - RJ45 & data terminal balun
4 x BNC to RJ45 CAT-5 video balun with data terminals. Converts up to 4 standard video signals to CAT-5, and allows up to 4 video signals to be sent up to 600 metres down a single CAT5 cable. Data terminals allow PTZ telemetry to be sent down the same cable, if data is used then only 3 video signals are available. Range 300 metres colour 600 metres monochrome. No external PSU required.
4 x BNC to RJ45 CAT-5 video balun with data terminals. Converts up to 4 standard video signals to CAT-5, and allows up to 4 video signals to be sent up to 600 metres down a single CAT5 cable. Data terminals allow PTZ telemetry to be sent down the same cable, if data is used then only 3 video signals are available. Range 300 metres colour 600 metres monochrome. No external PSU required.
4 x BNC to RJ45 CAT-5 video balun.
Converts up to 4 standard video signals
to CAT-5, and allows up to 4 video
signals to be sent up to 600 metres
down a single CAT5 cable. Range 300
metres colour 600 metres
monochrome. No external PSU
required.
19” 1U rack mounting receiver with 16 active
inputs and 16 outputs (BNC) for use with
15-W102T or 15-W103T to receive up to 16
video signals at up to 2400 metres down
CAT-5 cable, with extra interference immunity
and adjustable brightness & contrast for a
cleaner sharper looking picture, also with built
in surge protection. 12v DC regulated at 500mA
included.
19” 1U rack mounting receiver with 8 active
inputs and 16 outputs (BNC) 2 for each channel
for use with 15-W102T or 15-W103T to receive
up to 8 video signals at up to 2400 metres down
CAT-5 cable, with extra interference immunity
and adjustable brightness & contrast for a
cleaner sharper looking picture, also with built in
surge protection. 12v DC regulated at 500mA
included.
Single BNC (video) and single phono
(audio) to RJ45 CAT-5 video and audio
balun. Converts standard video and audio
signals to CAT-5, and allows a single
video and audio signal to be sent up to
600 metres. Range 300 metres colour
600 metres monochrome. No external
PSU required.
Single BNC to terminal block CAT-5 video
balun. Converts a standard video signal to
CAT-5, and allows a single video signal to
be sent up to 600 metres. Range 300
metres colour 600 metres monochrome.
No external PSU required.
1 x RJ45 to 4 x RJ45 CAT-5
distribution point. Allows 4 x CAT-5
video signals to be combined in to a
single CAT-5 cable. Power for
cameras can also be sent down the
same cable, camera power range is 30
metres video range 300 metres colour
600 metres monochrome. No external
power supply required.
Please note that the minimum
cable run is 300 Metres colour,
or 600 Metres B&W when using
active system CAT5
Please note that the minimum
cable run is 300 Metres colour,
or 600 Metres B&W when using
active system CAT5
Please note that the minimum
cable run is 300 Metres colour,
or 600 Metres B&W when using
active system CAT5
Please note that the minimum
cable run is 300 Metres colour,
or 600 Metres B&W when using
active system CAT5
Please note that the minimum
cable run is 300 Metres colour,
or 600 Metres B&W when using
active system CAT5
Please note that the minimum
cable run is 300 Metres colour,
or 600 Metres B&W when using
active system CAT5
CSW100V
CSW100VT
CSW100VP
CSW101AV
CSW104V
CSW104VD
CSW414VP
CSW102T
CSW103
CSW103T
CSW104RA
CSW116R
CSW108RAH
CSW116RAH
