CCTV Input Output Cards

The Camsecure CCTV Input Output Cards (I/O Cards) are designed to allow interfacing of Input and Output devices to a CCTV
system. Any input such as door contacts, movement detectors, smoke detectors, flood and gas detectors, switches and
buttons can be connected to the card. Each card also has Relay outputs which can be connected to anything you may want to
switch on or activate such as an alarm sounder, warning beacon or strobe, lighting, ventillation etc.

This allows you to build a true event driven CCTV system. For example when a Gas detector is alarmed it triggers the system,
this starts video recording on certain cameras that are usually just displayed as live images and sets off an audible and on
screen alarm to the CCTV operator who can now see the events taking place. The system triggers a Gas alarm to alert
personnel in the area and the doors are automatically unlocked. Extractor fans are also started automatically and the whole
chain of events are captured on camera and logged on the system.

This can all be easily achieved by adding I/O cards to your system.

We currently provide two CCTV Input Output card types for use with our 5008 PCI-E and GV-800B PCI Card Range.

CS2016 - 16 Input and 4 Output Relay CCTV I/O Card - operates with our 5008/5008A cards

Event Driven CCTV

With Input and Output cards linked to your
CCTV system you can control recording,
camera movement and external devices
such as alarms sirens and fans etc. all from
a central point.

Now, instead of just seeing, your camera
system can hear, smell and touch the
environment by connecting smoke, heat,
gas, flood and all manner of other detector
types to your Camsecure CCTV I/O card.

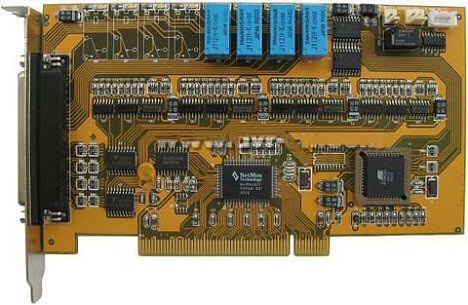

2016 CCTV Input Output Card

This card has 16 inputs to connect
switches, detectors, contacts etc.

It also has 4 dry contact relay outputs for
switching sounders and other auxillary
equipment, or other larger relays for
switching mains devices.

This card is designed to operate with our
5008 and 5008A PCI Express cards and
software but please note that the 2016 I/O
card is PCI and not PCI-E.

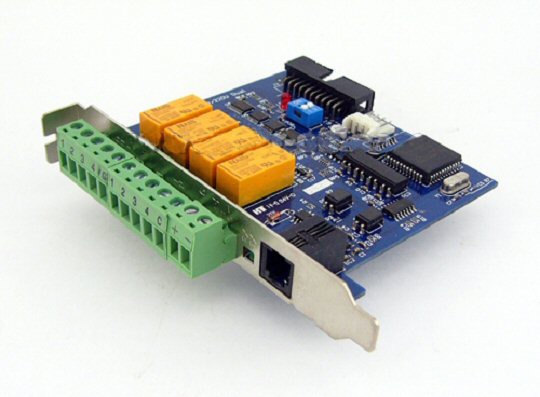

GV-NET-IO Card with PTZ Control

Our GV-NET Input Output card is designed
to operate with the GV-800B PCI Capture
Card. The I/O card sites in a rear card
access panel but does not occupy a PCI
slot as it plugs directly on to the 800B card
and is controlled from there.

This CCTV Input Output card provides 4
inputs for detectors or switches etc. and
also has 4 Relay outputs for control of
auxillary devices.

In addition to this the CCTV I/O card has
an RS485 output to directly control PTZ
cameras using the PELCO, Ademco or
Lilin camera control potocols.
