CCTV Equipment Software and Systems
Camsecure CCTV
Specification
* For use with any Inspire or Camsecure PTZ / speed dome
* Controls and programmes all camera and PTZ functions
* Can be used to give full remote control of Camsecure DVR's
* Can be used with up to 4 Camsecure DVR's
* Can be used with up to 255 cameras
* 3D joystick for zoom control
* Progressive joystick for precise control
* Pelco P/D protocols 2400; 4800; 9600 baud selectable
* Power input: 12v DC 250mA (PSU included)
* Size: 330 x 190 x 43mm
* For use with any Inspire or Camsecure PTZ / speed dome
* Controls and programmes all camera and PTZ functions
* Can be used to give full remote control of Camsecure DVR's
* Can be used with up to 4 Camsecure DVR's
* Can be used with up to 255 cameras
* 3D joystick for zoom control
* Progressive joystick for precise control
* Pelco P/D protocols 2400; 4800; 9600 baud selectable
* Power input: 12v DC 250mA (PSU included)
* Size: 330 x 190 x 43mm

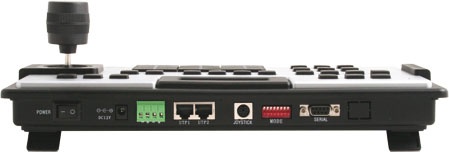

3D Controller rear View
To Our Dome Controller Selection Page
Our PTZ and Speed Dome Controllers are designed to allow full control and programming of Camsecure Speed Domes and Zoom cameras. These
speed dome controllers can also be programmed to operate other domes etc. using the well known PELCO protocols
speed dome controllers can also be programmed to operate other domes etc. using the well known PELCO protocols
Mini Speed Dome Controller
Miniature speed dome controller with keyboard and joystick and LED display, controls up to 32 speed domes,
for use with our zoom cameras, PTZ cameras and high speed domes. (Including 12V DC PSU), uses
Pelco-D, Pelco-P protocols at 2400, 4800 and 9600 baud. Has the facility to program presets, preset tours
and patrols as well as access the OSD on all our high speed dome cameras allowing the cameras to be set
up. Suitable for applications requiring a low cost joystick controller that will not be subject to heavy use. 12v
regulated @ 1.2A PSU included.
Miniature speed dome controller with keyboard and joystick and LED display, controls up to 32 speed domes,
for use with our zoom cameras, PTZ cameras and high speed domes. (Including 12V DC PSU), uses
Pelco-D, Pelco-P protocols at 2400, 4800 and 9600 baud. Has the facility to program presets, preset tours
and patrols as well as access the OSD on all our high speed dome cameras allowing the cameras to be set
up. Suitable for applications requiring a low cost joystick controller that will not be subject to heavy use. 12v
regulated @ 1.2A PSU included.
Controls all Camsecure PTZ Domes,
Speed Domes, Pan and Tilt only domes
and remote programmable camera's.
Speed Dome Controller with 3D Control
Speed dome controller with keyboard and 3D joystick. The joystick controls zoom in and out as well as direction. Intended for heavy use applications. Provides all the functions required to program and control speed domes, with the ability to program presets and camera settings using the on screen display. RS485 multi protocol including Pelco P / D and a LCD display to show camera selected, a 12v DC power supply is included.
Speed dome controller with keyboard and 3D joystick. The joystick controls zoom in and out as well as direction. Intended for heavy use applications. Provides all the functions required to program and control speed domes, with the ability to program presets and camera settings using the on screen display. RS485 multi protocol including Pelco P / D and a LCD display to show camera selected, a 12v DC power supply is included.
