SONY high resolution CCD chip anti vandal dome camera
Shadow View Camera colour in 0.00045 lux
colour picture in complete darkness
conventional cameras cant cope like shadow view
A to Z of Camsecure
Camsecure CCTV
CCTV Equipment Software and Systems
Our selection of mini fixed domes (no ptz) are extremely reliable and our external AntiVandal domes provide sparkling performance even in the
roughest environments............even aboard ship. There are both fixed focus and varifocal models to choose from.
Colour internal varifocal dome 520TVL

High resolution colour mini dome camera with a 3.5-8mm
varifocal lens. This camera is mounted in a plastic housing.
Ideal for internal applications.

520TVL Sony CCD
True colour
3.5-8mm varifocal lens
0.01 Lux
Plastic internal housing
Colour: Black
3-Axis rotation
Power input: 12v DC 75mA
C/W 300cm cable with BNC & DC jack connectors
Size: Ø 128 x 90mm

SONY High Resolution 3.5
- 8mm Varifocal with IR
LED's for night vision
Day / Night SONY Super HAD high resolution 3.5-8mm lens vandal resistant dome with IR LEDs 12v

High resolution day / night switching dome camera with a 3.5 - 8.0mm fixed iris lens. This anti vandal dome camera is mounted in a
3 axis gimbal allowing the camera to be moved in any direction. This allows the dome to be mounted on either the ceiling or a wall.
The housing is made from cast aluminium. The camera incorporates a dual glass technology that completely eliminates IR LED
reflection in to the lens at night. The housing is also IP65 weather proof allowing the camera to be fitted outdoors. The camera is
fitted with 36 high intensity IR LEDs that allow the camera to be used in total darkness up to a range of 25 metres.

1/3” SONY Super HAD CCD - SONY DSP 550 TV Lines - 3.5 - 8.0mm varifocal fixed iris lens - 0 Lux with IR LED 36 PCE LED
range of 25 metres - Auto electronic shutter (AES) - Back light compensation (BLC) - Built in moving IR cut filter -
3-axis gimbal
Cast aluminium housing - IP65 weather proof housing - Dual glass technology - Power input 12v DC

Extended Specification:

Camera Type Day / Night (switching) - Pick Up Device 1/3 “ SONY Super HAD CCD - Picture Elements 795 x 596 pixels
Digital Signal Processor SONY DSP - Horizontal Resolution 550 TV lines - Minimum Illumination 0.25 Lux colour
Minimum Illumination 0.0 Lux mono - Scanning System 2 : 1 Interlace - Synchronisation Internal - Video output 1Vp-p 75ohm
S/N Ratio 50dB min - Gamma 0.45 - Auto Gain Control +18dB max - Audio output N/A - Lens Type 3.5 - 8.0mm fixed iris
Iris Control Electronic Iris - Electronic Shutter 1/50 - 1/100,000 - White Balance Auto tracing - Back Light Compensation On
Gain Control Auto - Digital slow Shutter N/A - Horizontal Mirror N/A - IR LED Range 25 Metres - IR LED Angle 90 Degree
Power Supply DC12v - Power Consumption 430mA max - Dimension 120(D) x 100(H) mm
Razor sharp superly clear picture
from this excellent vandal resistant
camera
£49.99
£88.99
£59.99
£153.50
Model INS - 830DV
Model INS-315D Medium Resolution
Model INS-400-DVH
Model INS-300D
IP65 - suitable for outdoors
IP65 - suitable for outdoors
Colour Internal Dome, Sony CCD, medium res, 3.6mm lens, mini dome 12v

Medium resolution colour mini dome camera with a 3.6mm fixed iris lens. This camera is mounted in a plastic
housing. Ideal for internal applications

Camera Type Colour - Pick Up Device 1/4 “ SONY CCD - Picture Elements 532 x 597 pixels - Digital Signal -
Processor Hitachi DSP - Horizontal Resolution 380 TV lines - Minimum Illumination 1.0 Lux - Scanning System
2 : 1 Interlace
Synchronisation Internal - Video output 1Vp-p composite video 75ohm - S/N Ratio 50dB min - Gamma 0.45 -
Auto Gain Control +18dB max - Audio output N/A - Lens Type 3.6mm fixed iris lens - Iris Control Electronic iris -
Electronic Shutter 1/50 - 1/120,000
White Balance Auto tracing - Back Light - Compensation On/Off switchable - Gain Control Auto - Digital slow
Shutter N/A

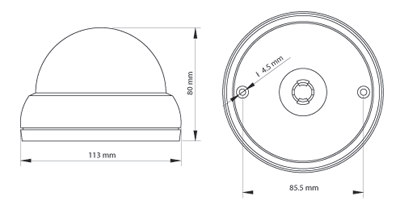

Horizontal Mirror N/A - Power Supply DC12v - Power Consumption 100mA max - Dimension 113(D) x 80(H) mm

SONY Shadow View Ultra
Low Light Camera 0.00045
lux and the picture is still
Colour
1) Sony CCD Chip (best there is)
2) True Colour or Day/night Selectable
3) 0.00045 Lux (Sens up technology switched on)
4) On Screen Display
5) 4 Masking Zones
6) Robust Aluminium Housing
7) Nice Graphite Colour
8) IP65 rated for use outdoors
9) 3 x Axis Rotation allows fixing vertically or
horizontally
10) 3 Year Warranty - 1 x Year Replacement
Warranty
11) High Resolution 550TVL
12) Varifocal Lens 3.5 - 11 mm
Our New Shadow View 0.00045 Lux Colour Camera can pull good
colour pictures from almost total darkness. See the full details and
specification of the Shadow View Camera Here.
£190.99
Shadow View Ultra Low Lux (0.00045) colour camera
Model INS-500DV
Register With Us for additional
Special Offers and Discounts
Colour/Mono Day/Night Sony CCD mini anti-vandal dome 420TVL or 520TVl models

Medium resolution colour during the day & monochrome at night dome camera with a 3.6mm fixed iris lens. The camera is mounted in a
robust aluminium housing that offers a 3 axis gimbal allowing the camera to be moved in any direction. This allows the dome to be
mounted on either the ceiling or a wall. The camera incorporates a dual glass technology that completely eliminates IR LED reflection in to
the lens at night. The camera is fitted with 24 IR LEDs that allow the camera to be used in total darkness up to a range of 15 metres. The
camera is IP65 rated and can be fitted outdoors.

Specification

Camera Type Colour / Mono - Pick Up Device 1/3 “ SONY Super HAD - Picture Elements 532 x 597 pixels
Digital Signal - Processor SONY DSP - Horizontal Resolution 420 TV lines - Minimum Illumination 0.5 Lux colour
Minimum Illumination 0.0 Lux mono - Scanning System 2 : 1 Interlace - Synchronisation Internal - Video output 1Vp-p 75ohm
S/N Ratio 50dB min - Auto Gain Control +18dB max - Audio output N/A - Lens Type 3.6mm fixed iris
Iris Control Electronic iris - Electronic Shutter 1/50 - 1/120,000 - White Balance Auto tracing - Back Light Compensation On
Gain Control Auto - Digital slow Shutter N/A - IR LED Range 15 Metres - IR LED Angle 90 Degree - Power Supply DC 12v
Power Consumption 250mA max - Dimension Ø 94 x 80mm
£88.66
Model INS-315D-H High Resolution
