CCTV Monitors, Metal Case, Glass Front, High Specification
CCTV Equipment Software and Systems
Camsecure CCTV


Camsecure CCTV Monitors - High Quality Purpose Designed for Continual Use (see bottom of page for larger picture)
Our range of CCTV monitors is excellent. The flat screen CCTV monitors have glass fronts and all metal cases making them very robust
indeed. These monitors are purpose designed for continual 24 hour use with excellent performance and high reliability. All the monitors in
this range have the same design cases so you can mix different sizes on the same installation if the need arises and they will still all look
the same with the same design and colouring. The 5" model has BNC plugs for the video input, all other models also have VGA inputs.
Audio is available starting from the 15" model upwards. Enhanced picture quality is aided by a 3D combe Filter, a 3D noise reduction
system and fast response times for better display of moving objects. Some models are 240 Volts AC input and some are 12 Volt DC
monitors supplied with adapters, so you can find a monitor here for automotive and portable low voltage applications too. With a wide range
of screen sizes and a 3 year warranty, our range of proffessional CCTV monitors are the high quality solution you need.

5" LCD monitor VGA - BNC metal case glass front - 12 Volts DC or Mains
5" TFT LCD display - Metal case - Glass front - 2x BNC in - Native resolution 640 x 480
Contrast ratio: 500:1 - Viewing angle: 60° - Brightness: 200 Cd/m2 - Colours: 16.7 million
Screen format: 4:3
Desk mount stand included
Wall mount option using standard VESA bracket
Power input: 12v DC (adapter included)
Dimensions 150 x 120 x 28mm (not including stand)
Weight: 0.8Kg
8" LCD monitor VGA - BNC metal case glass front
8" TFT LCD display - Metal case - Glass front - 1x BNC in - 1x VGA in
Native resolution 800 x 600 - Supports resolutions of 640x480, 800x600, 1024x768,
1280x1024 - Contrast ratio: 500:1 - Viewing angle: 60° - Brightness: 300 Cd/m2
Colours: 16.7 million - On screen display (OSD) - Screen format: 4:3 -
Desk mount stand included - Wall mount option using standard VESA bracket
Power input 240v AC - Dimensions 201 x 173 x 28mm (not including stand)
Weight: 1.35Kg
10" LCD monitor VGA - BNC metal case glass front - 12 Volts DC or Mains
10" TFT LCD display - Metal case - Glass front - 1x BNC in - 1x VGA in
Native resolution: 640 x 480 - Supports resolutions of 640x480, 800x600, 1024x768,
1280x1024 - Contrast ratio: 300:1 - Viewing angle: 60° - Brightness: 300 Cd/m2
Colours: 16.7 million - On screen display (OSD) - Screen format: 4:3
Desk mount stand included - Wall mount option using standard VESA bracket
Power input: 12v DC (adapter included)
Dimensions: 268 x 212 x 37mm (not including stand)
Weight 1.7Kg

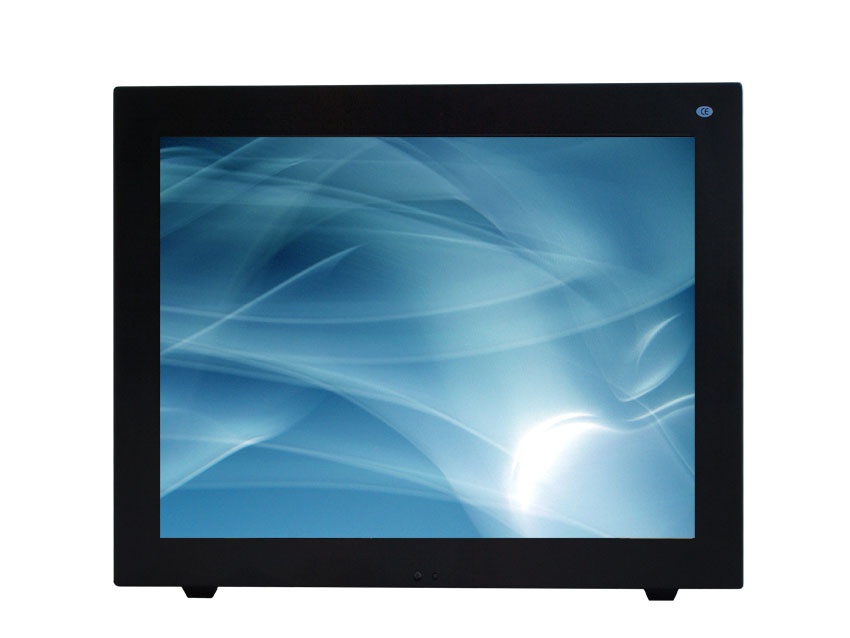

15" LCD monitor VGA - BNC metal case glass front - 12 Volts DC or Mains
15" TFT LCD display - 1x BNC in - 1x BNC out - 1x VGA in - 1x S-Video in - 1x audio in
1x audio out - 2x 3 Watt speakers - Screen format: 4:3 - Native resolution: 1024 x 768
Supports resolutions of 800x600, 1024x768, 1280x1024 - Contrast ratio: 500:1
Viewing angle: 80° - Brightness: 300 Cd/m2 - Colours: 16.7 million - On screen display (OSD)
Languages :- English, German, French, Italian, Spanish - Desk mount stand included
Wall mount option using standard VESA bracket - Power input: 12v DC (adapter included)
Power consumption: 40 Watt - Dimensions: 365 x 290 x 55mm (not including stand)
Weight 4.1Kg
17" LCD monitor VGA - BNC metal case glass front - 12 Volts DC or Mains
17" TFT LCD display - 1x BNC in - 1x BNC out - 1x VGA in - 1x S-Video in - 1x audio in
1x audio out - 2x 3 Watt speakers - Screen format: 4:3 - Native resolution: 1280 x 1024
Supports resolutions of 800x600, 1024x768, 1280x1024, 1440x900, 1600x1200
Contrast ratio: 500:1 - Viewing angle: 80° - Brightness: 300 Cd/m2 - Colours: 16.7 million
On screen display (OSD) - Languages :- English, German, French, Italian, Spanish
Desk mount stand included - Wall mount option using standard VESA bracket
Power input: 12v DC (adapter included) - Power consumption: 40 Watt
Dimensions: 395 x 330 x 55mm (not including stand)
Weight: 5.6Kg
19" LCD monitor VGA - BNC metal case glass front - 12 Volts DC or Mains
19" TFT LCD display - 1x BNC in - 1x BNC out - 1x VGA in - 1x S-Video in - 1x audio in
1x audio out - 2x 3 Watt speakers - Screen format: 4:3 - Native resolution: 1280 x 1024
Supports resolutions of: 800x600, 1024x768, 1280x1024, 1440x900, 1600x1200
Contrast ratio: 500:1 - Viewing angle: 80° - Brightness: 300 Cd/m2 - Colours: 16.7 million
On screen display (OSD) - Languages:- English, German, French, Italian, Spanish
Desk mount stand included - Wall mount option using standard VESA bracket
Power input: 12v DC (adapter included) - Power consumption: 40 Watt
Dimensions: 435 x 360 x 55mm (not including stand)
Weight: 5.8Kg
32" LCD monitor VGA - BNC metal case glass front
32" TFT LCD display - Metal case - Glass front - 2x BNC in - 2x BNC out - 1x VGA in
1x HDMI in - 1x S-Video in - 1x Audio in - Native resolution: 1366 x 768
Supports resolutions of 640x480, 800x600, 1024x768, 1280x1024, 1366x768
Contrast ratio: 800:1 - Viewing angle: 80° - Brightness: 500 Cd/m2 - Colours: 16.7 million
On screen display (OSD) - Screen format 16:9 - Supports Picture in Picture (PIP)
Supports Picture on Picture (POP) - 2x 10 Watt speakers - Wall mount only using standard
VESA bracket - Power input 240v AC - Dimensions: 760 x 450 x 75
Weight: 26Kg
42" LCD monitor VGA - BNC metal case glass front
42" TFT LCD display - Metal case - Glass front - 2x BNC in - 2x BNC out - 1x VGA in
1x HDMI in - 1x S-Video in - 1x Audio in - Native resolution: 1920 x 1080
Supports resolutions of 640x480, 800x600, 1024x768, 1280x1024, 1440x900, 1600x1200,
1680x1050, 1920x1080 - Contrast ratio: 1200:1 - Viewing angle: 80° - Brightness: 500 Cd/m2
Colours: 16.7 million - On screen display (OSD) - Screen format: 16:9
Supports Picture in Picture (PIP) - Supports Picture on Picture (POP) - 2x 10 Watt speakers
Wall mount only using standard VESA bracket - Power input: 240v AC
Dimensions: 1020 x 615 x 110mm
Weight 30Kg
5" LCD Monitor
8" LCD Monitor
£103.98
£149.75
10" LCD Monitor
£171.60
15" LCD Monitor
£241.28
17" LCD Monitor
£295.36
19" LCD Monitor
£319.28
32" LCD Monitor
£710.32
42" LCD Monitor
£1698.44
All our monitors in this range have the same style case from 5" to 42"
Note: The 32" model is
wall mount only
Note: The 42" model is
wall mount only
The metal casing on
all our monitors acts
as a heatsink
prolonging the life up
to 3 times over
standard monitors.
The commercial
grade ant scratch
glass front on all our
monitors offers great
protection to the LCD
screen and makes
cleanig the front
much easier.
The miniature remote
control supplied with
our monitors makes
switching the input
sources simple and
easy.
Special Order Item 14 - 21 Days
Special Order Item 14 - 21 Days
