IP Webcams and Cameras
4G Camera for Solar

Our 4G camera for Solar is designed specially for use with our Solar CCTV Power System. This camera has both standard IP and also 4G connectivity so it can be used on an existing network or communicate via the 4G network completely independantly. When used with our 4G solar Power System you can remotely monitor the camera and all the solar system stats too like battery charge, temperature and load etc. all via the same App in real time. The camera also has audio in and out, alarm in and out and smart features like tripwire along with built in micro SD card support for storage. note this camera can be used on its own but does not have built in solar panels, this camera is designed to be integrated into our Solar CCTV Power System for complete monitoring and control.

2 Megapixel 4G Camera for Solar Use

4G Camera for use with Solar System


This camera is designed for use with the Solar Power System and then provides a complete solar powered remote viewing and monitoring platform.

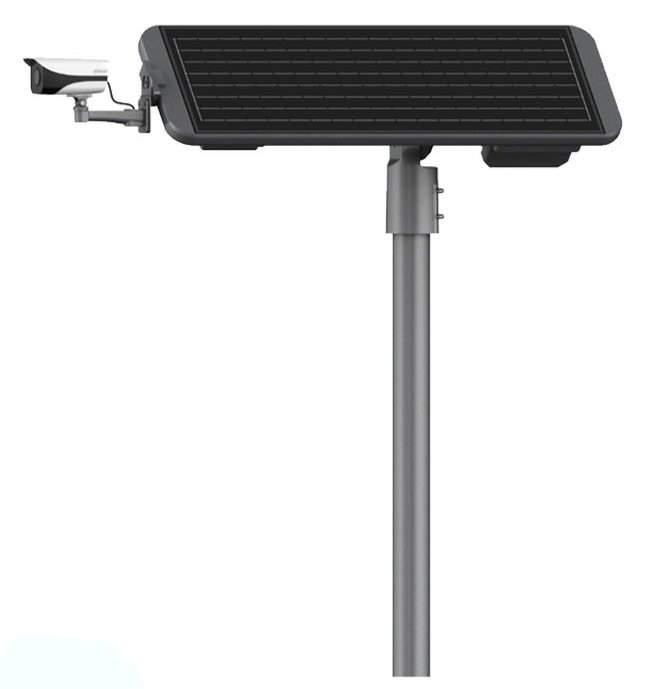

Complete Solar System from Camsecure
The 4G for Solar Camera and the Solar Power System are available as individual items and can be used separately to suit your application, But only when they are both used together are the full range of control and monitoring features supported.

2 Megapixel 4G Camera Specification

Image Sensor: 1/2.9" 2Megapixel progressive scan CMOS
Effective Pixels: 1920 x 1080
RAM: 256MB
Scanning System: Progressive
Min. Illumination: 0.04Lux/F2.0 (Colour 1/3s, 30IRE) 0.22Lux/F2.0(Colour 1/30s, 30IRE) 0Lux/F2.0(IR on)
S/N Ratio: >56dB
IR LEDs: 2
Lens Type: Fixed
Mount Type: M12
Focal Length: 3.6mm
Max. Aperture: F2.0
Field of View: H:82.5° V:44°
Focus Control: Fixed
Close Focus Distance: 0.9m
DORI Distance : Detect:53m, Observe:21m, Recognise:10m, Identify:5m
Event Trigger : Motion, Tampering, scene change, Net Disconnect, IP conflict, Illegal Access, Storage anomaly
IVS: Tripwire, Intrusioin
Video Compression: H.265, H.264H, MJPEG
Smart Codec : Yes
Stream Capability: 2 streams
Resolution : 1080P, 1.3M, 720P, D1, VGA, CIF
Frame Rate: Main Stream: 1080P@25fps Sub Stream: D1@25fps
Bit Rate Control : CBR/VBR
Video Bit Rate: H.264:32~10240Kbps, H.265:12~6400Kbps
Day/Night: Auto (ICR)
White Balance : Auto / Natural /Street Lamp / Outdoor / Manual
Gain Control : Auto
Noise Reduction : 3D DNR
Motion Detection: Off / On
Region of Interest : Off / On
Smart IR: Support
Flip: 0° / 90° / 180° / 270°
Mirror : Off/On
Privacy Masking : Off / On
Audio Compression: G.711a / G.711Mu / AAC / G.726
Ethernet: RJ-45 (10/100Base-T)
Mobile Communication: 4G
Operating Band : Model 1: TDD-LTE: Band 38/39/40/41 FDD-LTE: Band 1/3/5/8 WCDMA: Band 1/8 TD-SCDMA: Band 34/39 EVDO/CDMA1X: BC0 GSM: Band 3/8 Model 2: FDD-LTE: Band 1/2/3/45/7/8/20 UMTS: Band 1/2/5/8 GSM: 850/900/1800/1900
Protocol: IPv4, IPv6, HTTP, HTTPs, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, TLS, PPPoE, 802.1x, Bonjour
Interoperability: ONVIF Profile S&G, API
Streaming Method : Unicast / Multicast
Max. User Access : 10 Users / 20 Users
Edge Storage: NAS, Local PC for Instant Recording, Micro SD card 256GB
Browser: IE, Chrome, Firefox, Safari
Management Software: Smart PSS, DSS, DMSS
Mobile Phone : IOS, Android
Video Interface : N/A
Audio Interface : 1ch In/ 1ch Out
RS485: N/A
Alarm : 2ch In: 500mA 5VDC 2ch Out: 300mA 12VDC
Power Supply: DC12V ±30%
Power Consumption : 3.6W(IR off/ 4G off), 6W (4G on, IR off), 9.5W (4G on, IR on)
Operating Conditions: -30°C to +60°C
Storage Temperature: -30°C to +60°C
Protection : IP67
Casing : Metal & Plastic
Dimensions: 194.4mm x 96.6mm x 89.5mm
Net Weight : 0.7Kg
Gross Weight : 0.8Kg

By using the 4G camera connected to our Solar CCTV Power System, rapid deployment of a monitoring system can be achieved in areas with no power or internet connection provided there is mobile network support. For long term installations in woodlands and forests and other rural areas the system can be used for continual monitoring  and the battery and whole system status monitored remotely.
